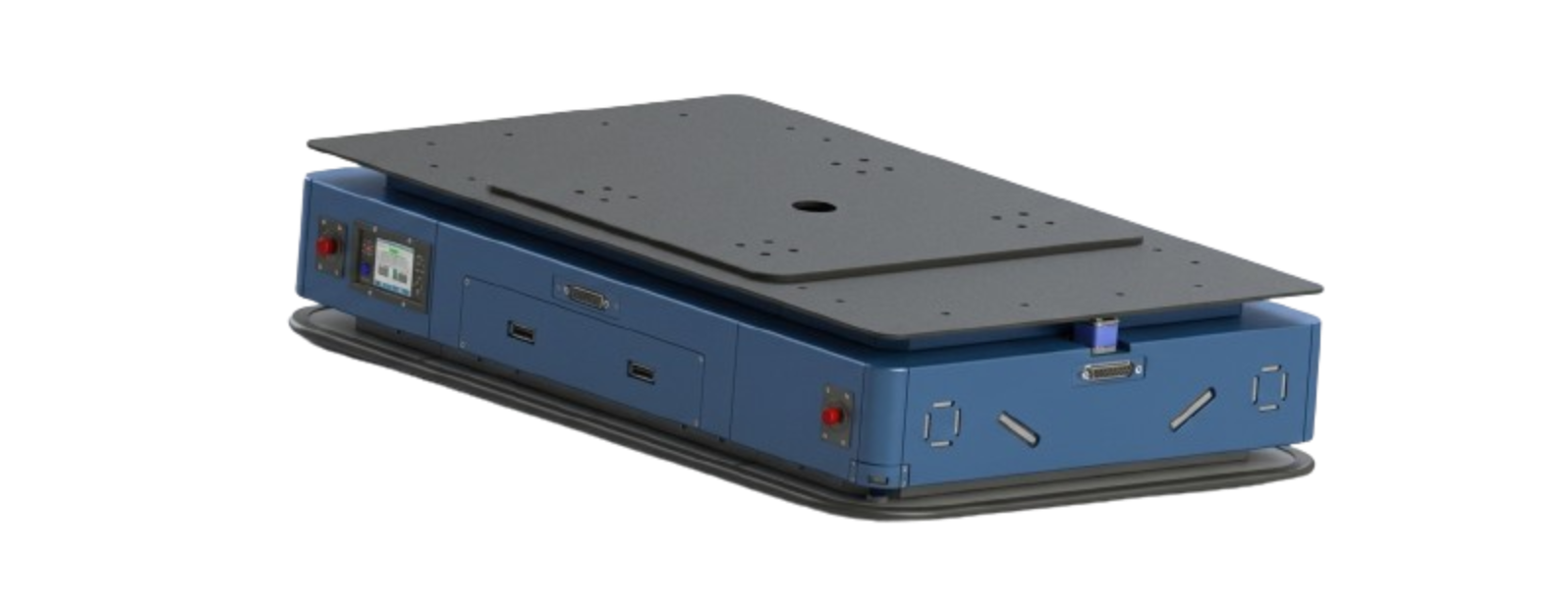

P-Diff 5 Ton – Ultra Heavy-Duty Autonomous Mobile Robot

P-Diff 5 Ton – Ultra Heavy-Duty Autonomous Mobile Robot

The P-Diff 5 Ton is an industrial-grade Autonomous Mobile Robot (AMR) designed for the autonomous transportation of extremely heavy materials and large assemblies. With a 5000 kg payload capacity, advanced navigation intelligence, and comprehensive safety features, the P-Diff 5 Ton enables seamless material flow across manufacturing plants, warehouses, and heavy engineering facilities while reducing manual handling and improving operational efficiency.

Key Highlights

5000 kg Payload Capacity for ultra-heavy material transportation

Real Laser SLAM Navigation for flexible, trackless operation

360° Safety Protection with advanced obstacle detection and adaptive safety zones

Automatic Dock Charging for uninterrupted autonomous operation

Fleet Management Support for up to 100 robots

Enterprise Integration with ERP, MES, WMS, MQTT, REST APIs, and VDA 5050 standards

Intelligent Navigation & Automation

The P-Diff 5 Ton utilizes advanced Laser SLAM technology and supports multiple navigation methods including natural navigation, QR code navigation, reflector navigation, and magnetic tape guidance. This enables rapid deployment and flexible operation in dynamic industrial environments without requiring extensive infrastructure changes.

Performance Specifications

Rated Payload: 5000 kg

Maximum Speed: Up to 0.8 m/s

Full Load Speed: 0.5 m/s

Navigation Accuracy: ±8 mm

Minimum Turning Radius: 1075 mm

Maximum Gradient: 3%

Step Climbing Capability: Up to 20 mm

Operating Temperature Range: 0°C to 45°C

Advanced Safety Features

Built for operation in demanding industrial environments, the P-Diff 5 Ton incorporates a 360° safety scanner, adaptive safety fields, dual-channel emergency stop systems, optional bumper protection, and visual and audible warning systems. These features ensure safe navigation around personnel, equipment, and critical production assets.

Battery & Operational Efficiency

Powered by a 52V / 120Ah LiFePO₄ battery, the robot delivers up to 8 hours of continuous operation and supports both manual and automatic charging. The advanced battery management system maximizes battery life while ensuring reliable performance during intensive industrial operations.

Ideal Applications

Heavy pallet and container transportation

Automotive manufacturing logistics

Steel and metal industry material movement

Heavy engineering and fabrication facilities

Warehouse and distribution center automation

Smart factory intralogistics and production support

The P-Diff 5 Ton combines exceptional payload capability, intelligent navigation, and industrial-grade safety to automate heavy material handling operations, improve productivity, and support the transition toward fully connected smart manufacturing environments.
